APSystems APStorage 10kWh Battery
$4,480.00 USD
Pickup available at Shop location
Usually ready in 2 hours
Take control of your energy with the APsystems APbattery 10kWh — a powerful, residential-grade battery storage system designed to maximize your solar investment, keep your home running during outages, and reduce your dependence on the grid.
Built for Performance
With 10.24 kWh of rated energy at 51.2V and 200Ah, the APbattery delivers consistent, reliable power for your home. It supports up to 6.14 kW continuous charge and discharge power, with a peak discharge of 8.19 kW — more than enough to handle everyday loads and unexpected demand spikes.
Scalable to Your Needs
Need more capacity? Up to 16 units can be connected in parallel, expanding your total storage to 163.84 kWh — making it a future-proof solution as your energy needs grow.
Long-Lasting & Certified
Rated for 6,000 cycles and a designed calendar life of 15 years, the APbattery is built to last. It's certified to UL9540A, UL1973, and UN38.3 standards and carries an IP65 weather-resistance rating, making it suitable for both indoor and outdoor installation.
Smart & Connected
Monitor and manage your system via CAN, RS485, Dry Contact, or optional WiFi connectivity — giving you full visibility into your energy storage from anywhere.

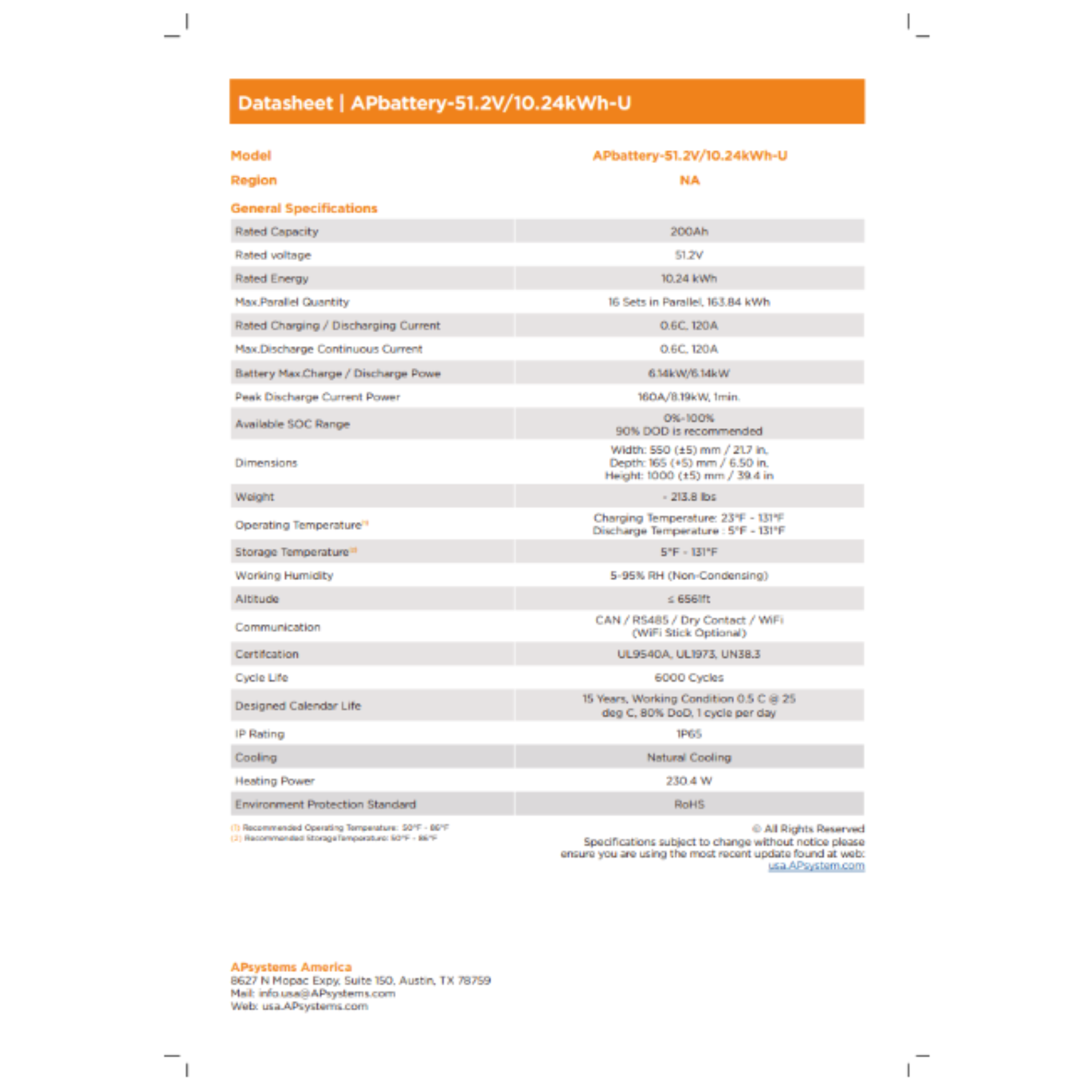

Specifications at a Glance:
- Rated Energy: 10.24 kWh
- Rated Voltage: 51.2V / 200Ah
- Max Charge/Discharge Power: 6.14 kW / 6.14 kW
- Peak Discharge Power: 8.19 kW (1 min)
- Recommended Depth of Discharge: 90%
- Cycle Life: 6,000 Cycles
- Calendar Life: 15 Years
- Weight: ~213.8 lbs
- Dimensions: 21.7"W × 6.50"D × 39.4"H
- IP Rating: IP65
- Cooling: Natural Cooling
- Certifications: UL9540A, UL1973, UN38.3, RoHS
- Communication: CAN / RS485 / Dry Contact / WiFi (Optional)
- Max Parallel: 16 Units (163.84 kWh total)
Have any questions? Email us at info@solwel.com or give us a call at (346) 432-4228
Frequently Asked Questions — APsystems APStorage 10kWh Battery
What battery chemistry does the APStorage use?
The APStorage uses Lithium Iron Phosphate (LFP / LiFePO₄) chemistry. LFP is the preferred chemistry for home energy storage — it's thermally stable, has a long cycle life (3,000+ cycles), and is safe for indoor installation.
What inverter does the APStorage battery work with?
The APStorage battery is designed to pair with the APsystems ELS PCS (Power Conversion System). It is not a standalone battery — the ELS PCS manages all charge, discharge, and grid interaction for the system.
Can I add more batteries later?
Yes. The APStorage system is modular — multiple battery units can be connected in parallel with the ELS PCS to expand your total storage capacity over time.
Can the APStorage battery be installed indoors?
Yes. The LFP chemistry and thermal management make the APStorage battery safe for indoor installation in garages or utility rooms. Always follow local code requirements for clearances and ventilation.
What warranty does the APStorage battery carry?
The APStorage battery carries a manufacturer warranty. As an authorized APsystems distributor, Solwel supports warranty claims directly. Call us at (346) 432-4228 for assistance.
