FranklinWH vs EG4: Which Home Battery System Is Right for Your Installation?

When a homeowner asks for a battery recommendation, two names come up constantly in the mid-range residential market: FranklinWH and EG4. Both use lithium iron phosphate chemistry, both are wall-mounted, and both are priced competitively enough to close deals. But they serve different job sites, different inverter ecosystems, and different customer profiles. Here is what you need to know before you spec either one.

Specs at a Glance

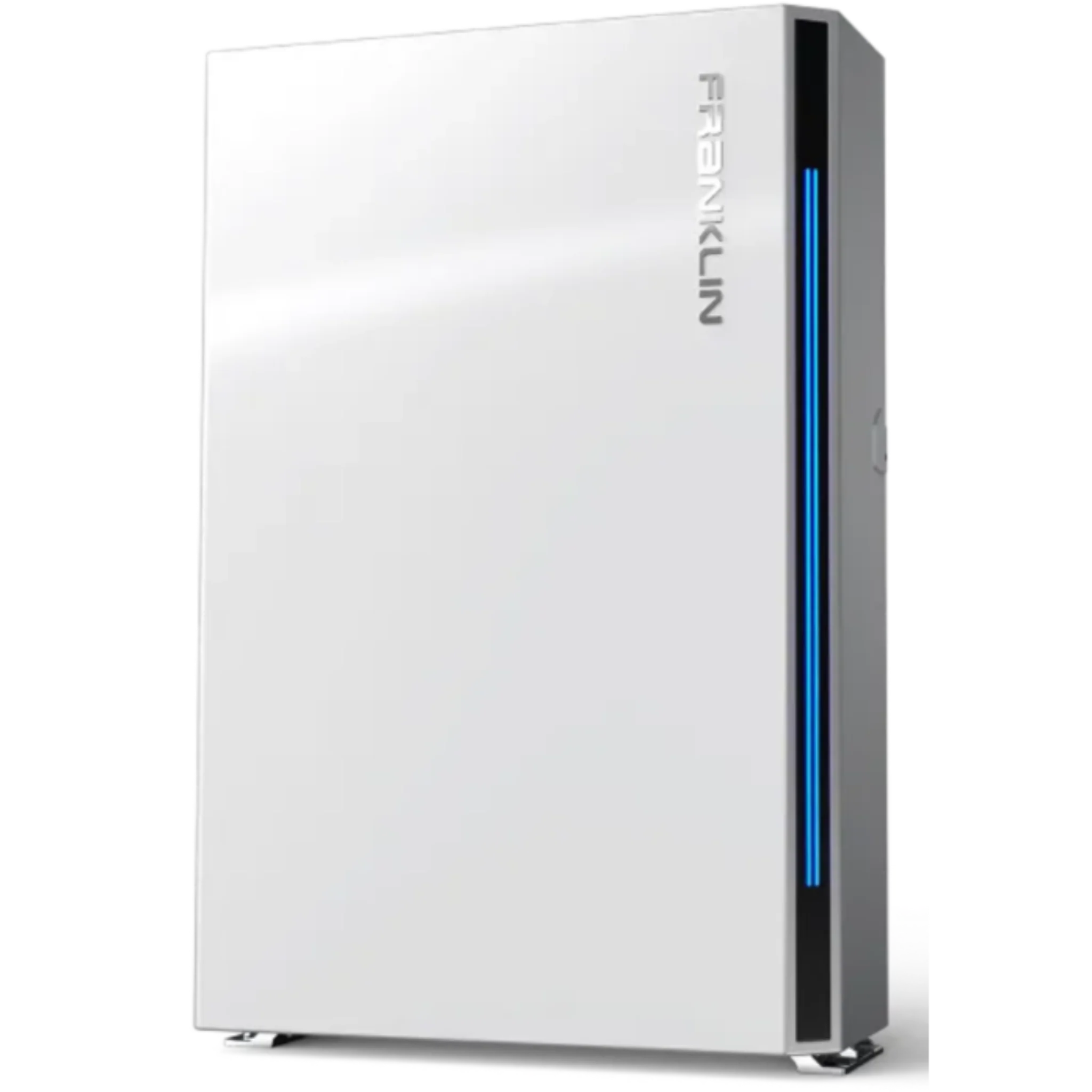

The FranklinWH aPower 2 offers 15 kWh of usable capacity with 10 kW of continuous power output. It is an AC-coupled system with a built-in bidirectional inverter, operates on LFP chemistry, and carries a 15-year warranty. That warranty length is one of the longest in its class and is a real selling point when a homeowner is asking about the 25-year roof they just put on.

The EG4 WallMount Indoor delivers 14.3 kWh of usable capacity and is rated for 8,000 cycles at standard depth of discharge — a cycle count that translates to well over a decade of daily use in most climates. It is a DC-coupled battery, meaning it requires a compatible hybrid inverter (EG4's own lineup or select third-party units) rather than standing alone as an AC system.

AC-Coupled vs. DC-Coupled: Why It Changes the Job

This is the most practically important difference between the two. The FranklinWH aPower 2 is self-contained: it communicates directly with the grid and existing solar through its integrated inverter. That makes it a strong retrofit option — you can add it to an existing grid-tied system without replacing the solar inverter. Install time is straightforward and most electricians with battery experience can execute it cleanly.

The EG4 WallMount is DC-coupled and needs to be paired with a compatible hybrid inverter. If you are designing a system from scratch and already specifying an EG4 inverter, this is seamless. If you are retrofitting, you may need to swap or add an inverter, which adds cost and complexity to the scope of work.

Inverter Ecosystem Compatibility

FranklinWH plays well in mixed environments precisely because it is AC-coupled. It does not care what brand of solar inverter is already on the roof. EG4's battery ecosystem, by contrast, is optimized around their own inverters — the 6000XP, the 18kPV, and similar units. For installers who already run a lot of EG4 iron, the WallMount is a natural add-on. For installers with a diverse inverter mix, FranklinWH's flexibility is worth the slight premium.

Pricing and Value

EG4 has built its brand on value-forward pricing, and the WallMount is no exception. On a straight cost-per-kWh basis, EG4 typically comes in lower. FranklinWH's higher sticker price is partially offset by what you do not need to buy separately — there is no additional inverter required, and the longer warranty reduces callback risk over the life of the system.

For a customer who wants the lowest upfront number and is comfortable with a full DC-coupled system, EG4 wins on economics. For a customer who values simplicity, retrofit compatibility, and the longest warranty available, FranklinWH justifies the cost difference.

Ideal Use Cases

Choose the FranklinWH aPower 2 when:

• You are retrofitting battery storage onto an existing grid-tied solar system
• The customer wants a long warranty and minimal future risk
• You want to minimize inverter touchpoints on the job
• The project calls for a clean, self-contained AC-coupled solution

Choose the EG4 WallMount when:

• You are designing a new system around an EG4 hybrid inverter
• The customer is budget-conscious and cost-per-kWh matters most
• You need to stack multiple units and want proven cycle longevity
• The job site already has EG4 infrastructure in place

Bottom Line

Neither battery is universally better — they are optimized for different scenarios. FranklinWH wins on flexibility and warranty. EG4 wins on price and DC-coupled system integration. Know your job site before you commit to either. Both are available through Solwel, and our team can help you work through the spec if you are on the fence.
