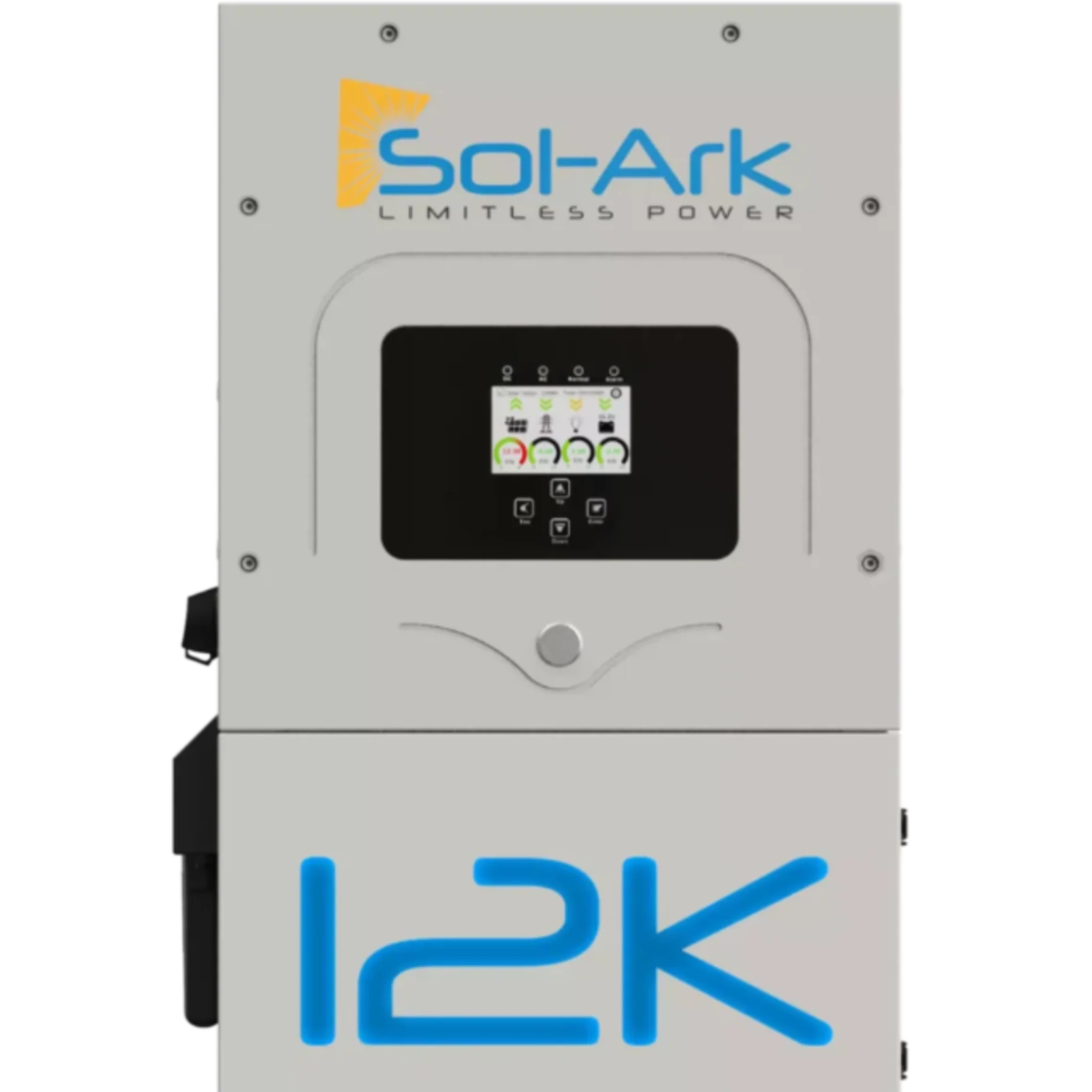

Sol-Ark 12K vs 15K: Choosing the Right Hybrid Inverter for Your Project
Sol-Ark has earned a strong reputation in the residential and light commercial solar market for building reliable, installer-friendly hybrid inverters with serious backup capability. The two units that come up most often in residential specs are the Sol-Ark 12K and the Sol-Ark 15K. They look similar on a spec sheet, but choosing the wrong one for a job creates headaches — either an undersized system that frustrates the homeowner during an outage, or an oversized one that blows the budget unnecessarily.
The Core Difference: Continuous Output Power
The most important distinction is continuous AC output during backup operation. The Sol-Ark 12K delivers 12,000W of continuous output, which is sufficient for partial-home backup — essential circuits, the HVAC in many cases, and a reasonable subset of the home's loads. It handles most single-family homes where the customer has thought through load prioritization.
The Sol-Ark 15K steps up to 15,000W of continuous output, which opens the door to whole-home backup for larger homes, homes with heavy HVAC loads (think larger central AC units or two-zone systems), or any project where the customer's expectation is that nothing goes dark during a grid outage. It also handles 240V split-phase loads that can push a 12K to its limits.
Solar Input and Battery Charging
Both units support substantial PV input. The 12K handles up to 16,000W of PV input across its MPPT inputs, while the 15K supports up to 18,000W. For most residential projects this difference is not a constraint — most systems are sized well within both windows — but on larger rooftops with high string counts, the 15K's headroom is useful.
Both inverters support a wide battery voltage range and are compatible with popular lithium battery brands including EG4, FranklinWH, Fortress, and others using standard CAN or RS485 communication. Battery compatibility is not a differentiating factor between the two units.
NEM 3.0 and Export Management
California installers will care about this: both the 12K and 15K are capable of operating under NEM 3.0 export management requirements. Sol-Ark's control platform allows for zero-export configuration and time-of-use optimization, which is essential in NEM 3.0 markets where self-consumption economics drive battery sizing. Neither unit has an inherent advantage here — it is a software configuration, not a hardware limit.
Physical Installation Considerations
Both units are wall-mounted, all-in-one hybrid inverters with integrated transfer switch functionality. The 15K is physically larger and heavier, which matters in tight utility rooms or garages where mounting space is constrained. If you are retrofitting into an existing equipment space, measure first.
Both units operate on 240V split-phase power (standard U.S. residential) and include a built-in automatic transfer switch, so grid-to-backup transitions are seamless without a separate ATS in the panel. This is a meaningful installation simplification compared to older multi-component setups.
Which Project Gets Which Unit
Use the Sol-Ark 12K for:
- Standard single-family homes up to approximately 2,500 square feet with typical load profiles
- Projects where partial-home backup is acceptable and the customer has agreed on critical load prioritization
- Budget-sensitive projects where the cost delta between 12K and 15K matters
- Homes with a single-zone HVAC system under 4 tons
Use the Sol-Ark 15K for:
- Larger homes or homes with above-average electrical loads
- Customers who explicitly want whole-home backup with no load shedding
- Projects with two HVAC zones or high-draw appliances (well pumps, EV charging, large chest freezers)
- Systems where future load expansion is anticipated
- Any project where undersizing the inverter would generate a callback
Price Delta and ROI
The 15K carries a higher upfront cost than the 12K — typically in the range of several hundred dollars depending on your distributor pricing. On a project where the customer's expectations clearly point to whole-home backup, spending the extra money upfront is far cheaper than the customer service cost of a callback where the inverter is tripping on overload. Spec to the load, not to the price.
Final Recommendation
If you are unsure which to spec, do a load calculation before you commit. Sol-Ark's sizing guidance is clear, and the math rarely lies. When the continuous load during backup is likely to exceed 10 to 11 kilowatts — accounting for motor start surge from HVAC — go with the 15K. Below that threshold and with a willing homeowner on load prioritization, the 12K performs exceptionally well. Both units are stocked at Solwel in Houston and available for same-week delivery on most orders.
