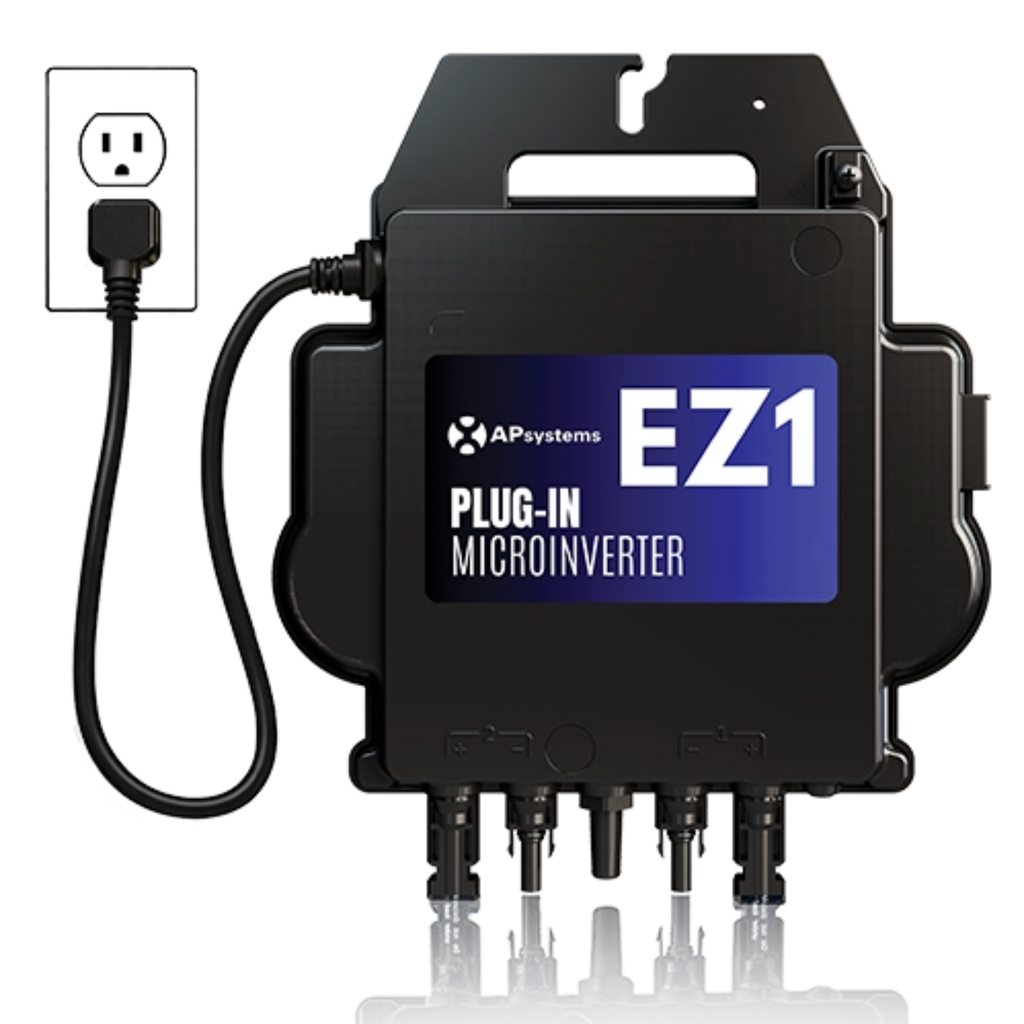

APSystems EZ1 Plug-In Ready Microinverter 2-to-1 (EZ1-LV-NA) (5m Power Cord Included)
$293.65 USD
Pickup available at Shop location
Usually ready in 2 hours
The APSystems EZ1 is the first plug-in ready microinverter designed specifically for DIY solar installers. This revolutionary 2-to-1 unit eliminates complex wiring and streamlines installation, making residential solar accessible to anyone. With 900VA maximum output power, 96% peak efficiency, and a 10-year warranty, the EZ1 delivers professional-grade performance in a compact, yet powerful package. Real-time monitoring via encrypted Zigbee connectivity lets you track energy production instantly. Whether you're expanding an existing system or starting fresh, the EZ1 transforms DIY solar from complicated to straightforward—no electrician required.
Certifications & Compliance
UL 1741 Listed | UL 1741 SA (Grid Support) | NEMA-3R Enclosure | 10-Year Manufacturer Warranty | NEC Rapid Shutdown Compliant
UL 1741 Listed | UL 1741 SA (Grid Support) | NEMA-3R Enclosure | 10-Year Manufacturer Warranty | NEC Rapid Shutdown Compliant

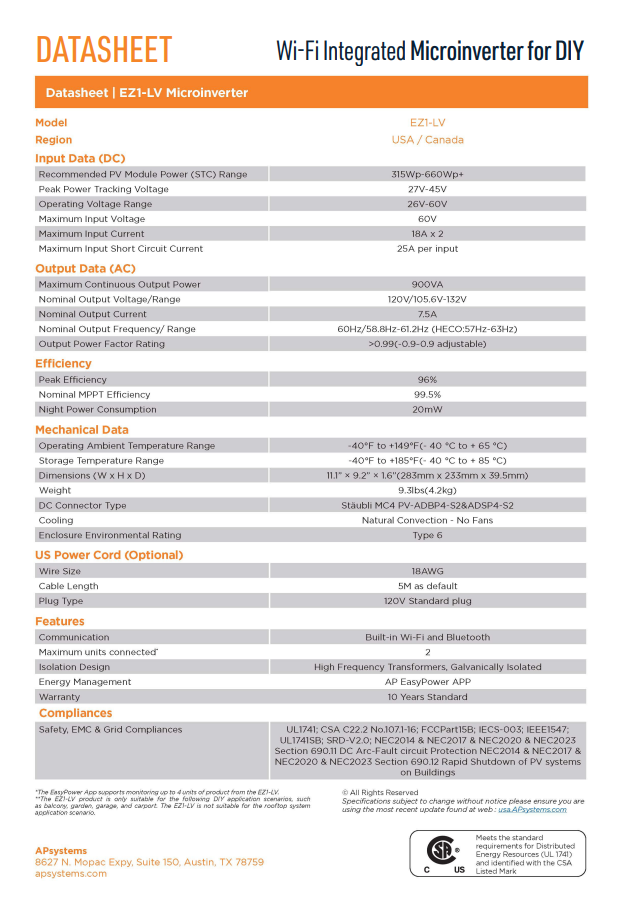

APSystems EZ1 Microinverter Specifications
| Specification | Value |
|---|---|
| Recommended PV Module Power Range | 315Wp-660Wp+ |
| Maximum Continuous Output Power | 900VA |
| Peak Efficiency | 96% |
| Output Voltage Range | 102V/105.6V-132V |
| Output Frequency | 60Hz |
| Maximum Input Current | 18A × 2 |
| Operating Temperature Range | –40°F to +149°F (–40°C to +65°C) |
| Weight | 9.3 lbs (4.2 kg) |
| Dimensions | 11.1" × 9.2" × 1.6" (283 mm × 233 mm × 39.5 mm) |
| Mounting Options | Panel or rail mount |
| Connectivity | Encrypted Zigbee |
| Monitoring | Real-time energy production tracking via APS platform |
| Warranty | 10 years |
The EZ1 system can be set up in the following arrangements (w/required hardware):
| Arrangement |
Required hardware |
| 1-Panel Arrangement |
|
| 2-Panel Arrangement |
|
| 3-Panel Arrangement |
|
| 4-Panel Arrangement |
|
Have any questions? Email us at info@solwel.com or give us a call at (346) 432-4228
Frequently Asked Questions — APsystems EZ1 Microinverter (2-to-1)
What makes the EZ1 a "plug-in" microinverter?
The APsystems EZ1 is designed to plug into a standard household outlet or dedicated circuit using the included 5m power cord — making it the most accessible entry point into solar for homeowners who want to start small without a full installation.
How many panels does the EZ1 connect to?
The EZ1 is a 2-to-1 microinverter, connecting to two solar panels per unit. Each panel has its own independent MPPT input, so shading on one panel does not affect the other.
Does the EZ1 require professional installation?
The EZ1 is designed for simplified self-installation in many states, but permit and inspection requirements vary by jurisdiction. Always check with your local AHJ before installing any grid-connected solar equipment.
Does the EZ1 provide monitoring?
Yes. The EZ1 includes Bluetooth and WiFi connectivity and integrates with the APsystems EMA monitoring platform — no separate gateway required. Real-time production data is accessible via the APsystems app.
What certifications does the EZ1 carry?
The APsystems EZ1 is UL 1741 listed. Always verify local interconnection and permitting requirements before installation.
