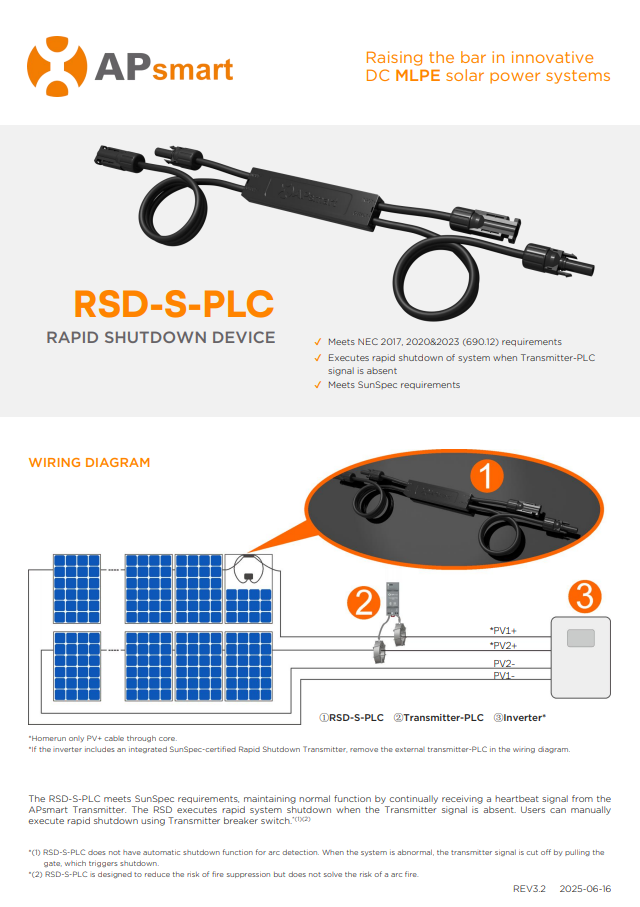

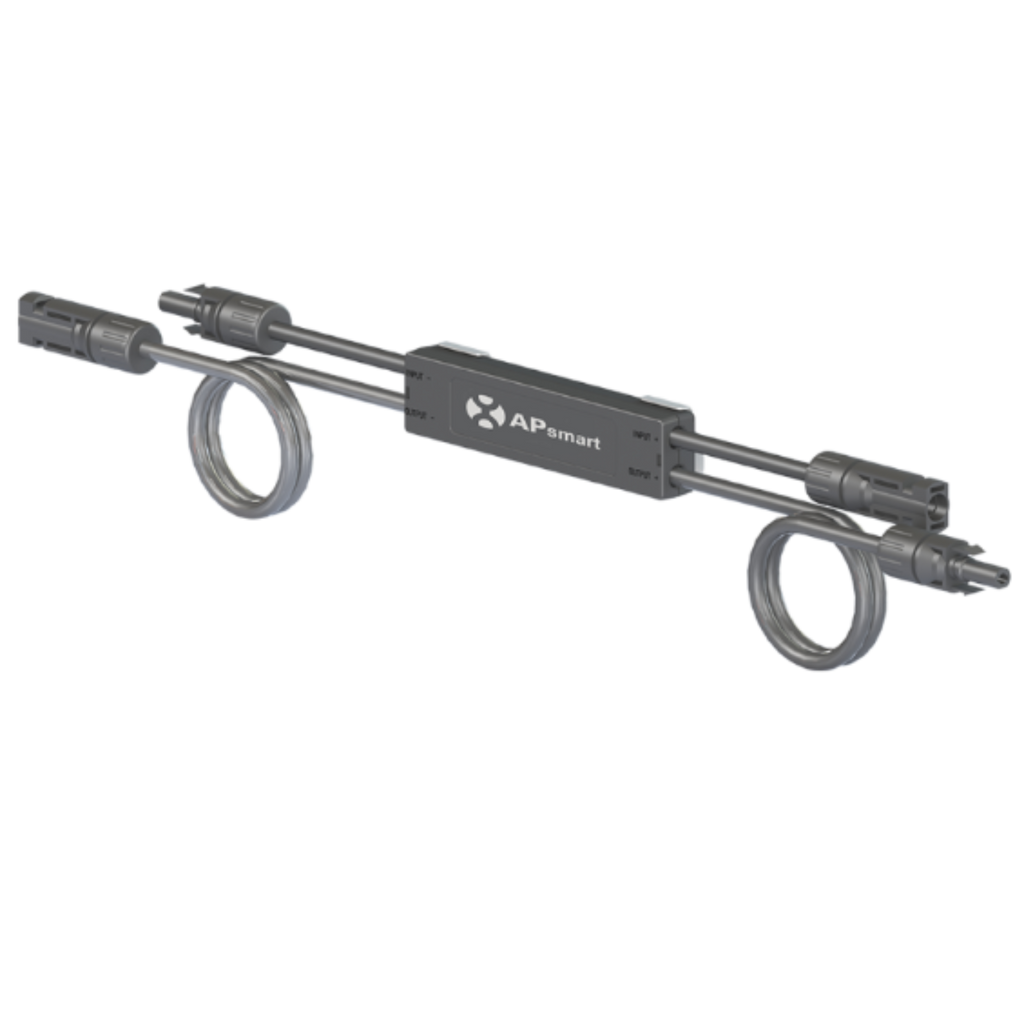

APSmart Rapid Shut Down 2-to-1 (RSD-S-PLC)
$37.40 USD
Pickup available at Shop location
Usually ready in 2 hours
The APSmart Rapid Shut Down 2-to-1 (RSD-S-PLC) delivers fast, reliable emergency shutdown capability for critical applications. This dual-input device enables quick system termination when needed, combining compact design with dependable performance. Ideal for safety-critical environments where rapid response is essential. Built for industrial and commercial use with straightforward integration into existing control systems.

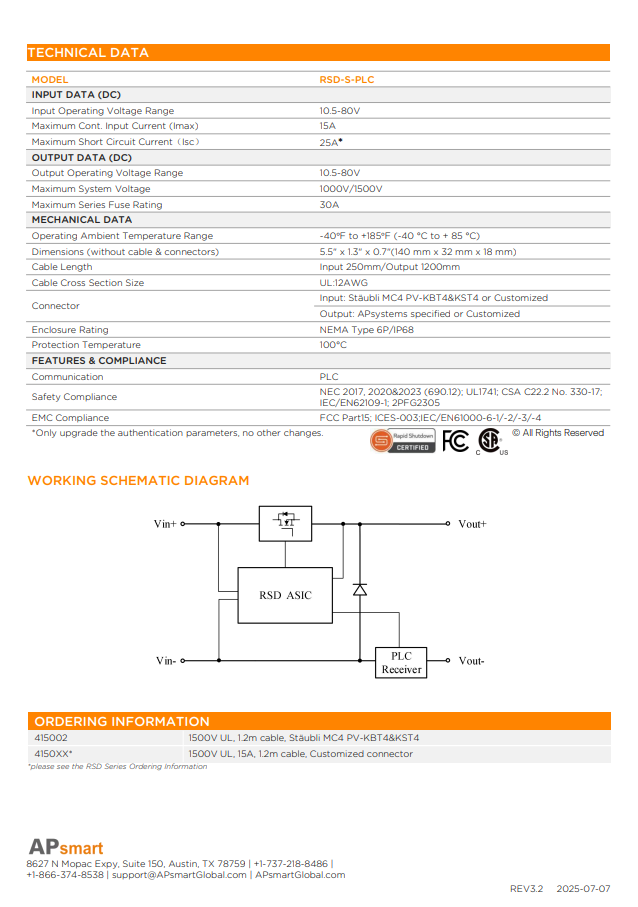

| APsmart RSD-S-PLC — Rapid Shutdown Device Specifications | |
|---|---|
| Input voltage range | 10.5 – 80 V DC |
| Max. continuous input current (Imax) | 15 A |
| Max. short-circuit current (Isc) | 25 A |
| Max. series fuse rating | 30 A |
| Output voltage range | 10.5 – 80 V DC |
| Max. system voltage (Vmax) | 1000 V / 1500 V |
| Number of inputs | 2 |
| Communication protocol | Power Line Communication (PLC) |
| Shutdown trigger | Transmitter signal absent or breaker switched off |
| Dimensions (without cable) | 5.5" × 1.3" × 0.7" (140 × 32 × 18 mm) |
| Enclosure rating | NEMA 6P / IP68 |
| Connector type (input) | Stäubli MC4 (PV-KBT4 / KST4) |
| Cable length | Input: 250 mm / Output: 1200 mm |
| Cable cross-section | 12 AWG |
| Operating temperature | -40 °F to +185 °F (-40 °C to +85 °C) |
| NEC compliance | NEC 2017, 2020 & 2023 (Section 690.12) |
| Safety standards | UL 1741, CSA C22.2 No. 330-17 |
