FranklinWH aGate X  Energy Management Device AGT-R1V2-US
1/2

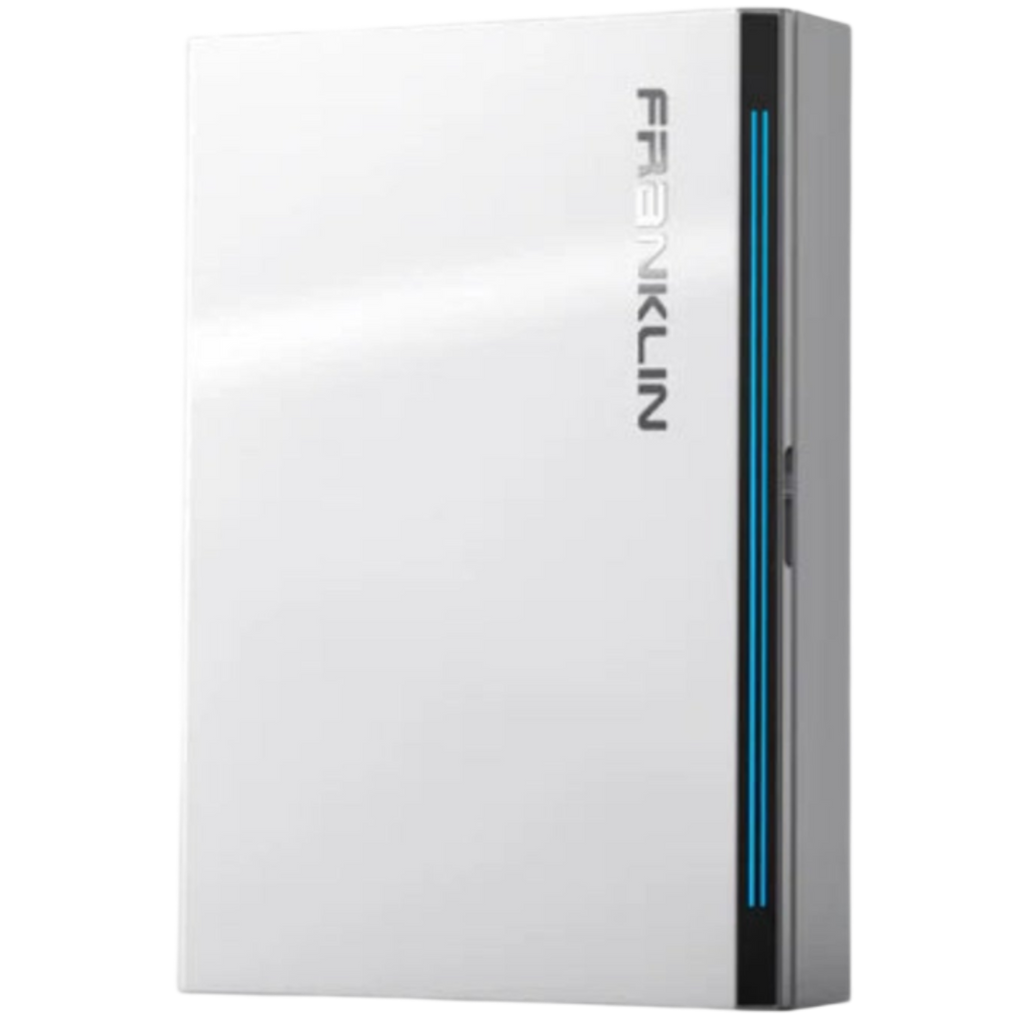

FranklinWH aGate X Energy Management Device (AGT-R1V2-US)

$1,700.00 USD

Pickup available at Shop location

Usually ready in 2 hours

View store information

FranklinWH aGate X Energy Management Device (AGT-R1V2-US)

Default Title

Shop location

Pickup available, usually ready in 2 hours

4620 S Sam Houston Pkwy W ste 450
Houston TX 77053
United States

+13464324228

The FranklinWH aGate X is a microgrid interconnect device (MID) and whole-home energy management system that ties together solar, the utility grid, battery storage, and standby generators into a single intelligently controlled platform. Rated for 280A busbar capacity with a built-in power conversion system (PCS) function, it is engineered to avoid main panel upgrades on most residential installations — a key time and cost saver for solar installers.

The aGate X acts as the nerve center for the Franklin Home Power system. It monitors and controls all energy flows in real time, transitions the home to backup power within milliseconds of a grid outage, and supports black start capability for recovering from fully depleted battery states after extended outages or vacant-home scenarios.

  • Busbar Rating: 280A — eliminates main panel upgrade requirements on most homes
  • Integrated PV and grid metering for accurate system performance tracking
  • Certification: UL 1741
  • Compatibility: Works with micro-inverters and string solar inverters
  • Generator Integration: Supports two-wire start generators via optional Generator Module
  • Smart Circuits: Integrates with Smart Circuits Module for load management of EVs, HVAC, and pool pumps
  • V2L (Vehicle-to-Load): Power essential home loads from a compatible EV during emergencies
  • Commissioning: Via Wi-Fi hotspot or Bluetooth — no external router required on-site
  • Enclosure: Indoor and outdoor rated, wall-mounted with bottom, left, or right conduit entry options
  • Warranty: 12-year limited warranty

The aGate X can be installed at the service entrance, connected to an existing main load center, or used as a standalone load center. For installers, its flexible conduit entry options and built-in Smart Circuits and Generator Module design slots reduce panel hardware, streamline the electrical rough-in, and simplify AHJ inspections. The aGate X is required for full Franklin Home Power functionality and pairs exclusively with aPower 2 battery systems.
