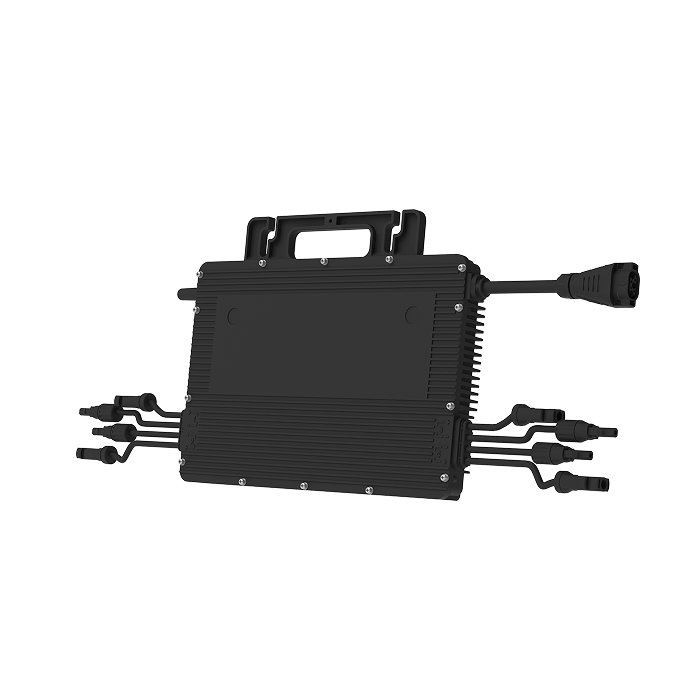

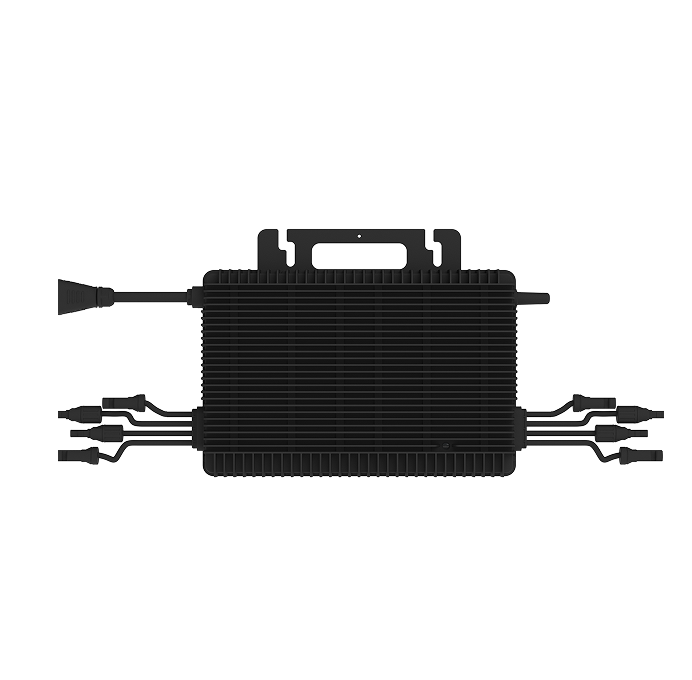

Hoymiles 1600 Microinverter 4-to-1 (HMS-1600-4T-NA)
$292.00 USD
Pickup available at Shop location
Usually ready in 2 hours
Hoymiles new microinverter HMS-1600 series are suitable for high-powered solar panels, which rank among the highest for 4-in-1 microinverters.
Each microinverter can connect up to 4 panels, with independent MPPT and monitoring maximizing the power production of your installation. With a maximum DC voltage of 65 volts,
Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms
with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec
64-218.

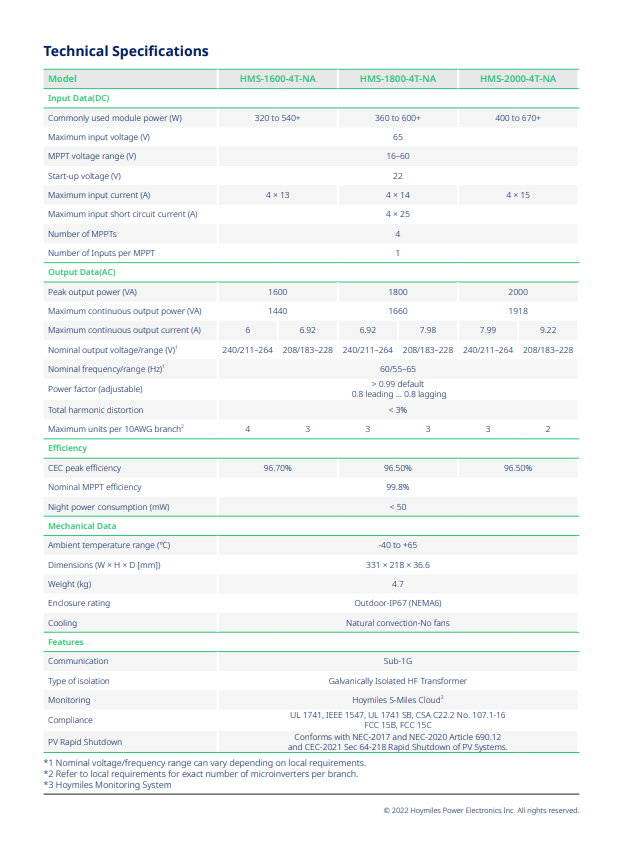

Hoymiles HMS1600 Microinverter Specifications:
| Recommended PV Module Power Range | 320W to 540W+ |
| Maximum Continuous Output Power | 1440 VA |
| Output Voltage Range | 240/211–264 V; 208/183–228 V |
| Output Frequency | 60/55–65 Hz |
| Peak Efficiency | 96.7% |
| Maximum Input Current | 4 x 13 |
| Operating Temperature Range | -40°F to +149°F (-40°C to +65°C) |
| Weight | 10.37 lbs (4.7 kg) |
| Dimensions | 10.3” × 8.6” × 1.6” (263mm x 218mm x 41.2mm) |
| Mounting | Panel or rail mount |
| Warranty | 25 years standard |
| Connectivity | Sub-1G |
| Monitoring | Hoymiles S-Miles Cloud |
Have any questions? Email us at info@solwel.com or give us a call at (346) 432-4228
Why Buy From Solwel?
- Free Shipping on Orders Over \$10,000 — Fast fulfillment from our Houston and Dallas warehouses
- Authorized Distributor — Genuine manufacturer-backed products with full warranty support
- Expert Technical Support — Our team knows these products inside and out. Call us at (346) 432-4228
- Installer Pricing Available — Contact us for volume pricing and contractor accounts
- Stocked in Texas — Reduced lead times for Southwest and national projects
Frequently Asked Questions — Hoymiles HMS-1600 Microinverter
What is a microinverter and why choose one over a string inverter?
A microinverter converts DC to AC at each individual solar panel. The HMS-1600 eliminates shading losses across string connections and provides panel-level monitoring, letting you identify underperforming panels immediately. It's ideal for rooftops with complex shading or multiple roof orientations.
How many panels does the HMS-1600 connect to?
The Hoymiles HMS-1600 is a 4-to-1 microinverter, connecting to four solar panels per unit. This significantly reduces component count and cabling on larger arrays compared to 1-to-1 or 2-to-1 designs.
Does the HMS-1600 work with high-wattage panels?
Yes. The HMS-1600 is designed for modern high-wattage panels and is rated for up to 400W per input channel. It's compatible with most residential and commercial solar modules currently available.
Does the HMS-1600 require a separate monitoring gateway?
Yes. The HMS-1600 communicates with the Hoymiles DTU (Data Transfer Unit) gateway for system monitoring via the S-Miles platform. The DTU is sold separately.
What certifications does the HMS-1600 carry?
The Hoymiles HMS-1600 is UL 1741 listed and meets NEC rapid shutdown requirements. Always verify local utility interconnection requirements with your installer.
