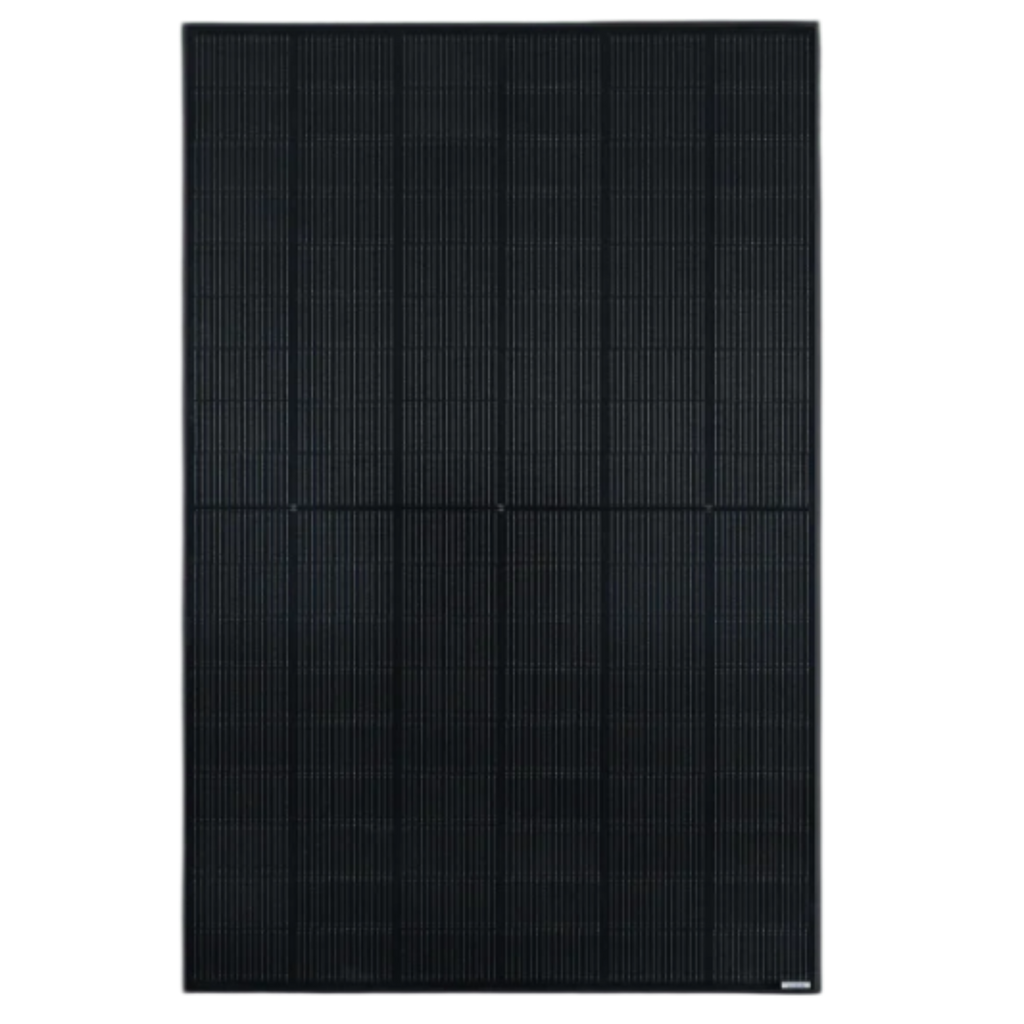

Runergy 455W Bifacial Solar Panel (HY-DH96N11B)
$160.16 USD
Pickup available at Shop location
Usually ready in 2 hours
The Runergy 455W Bifacial Solar Panel (HY-DH96N11B) is a Tier-1, all-black N-Type bifacial dual-glass module built on Runergy's advanced 210R cell platform. With up to 23.0% efficiency, lower temperature coefficient, and outstanding low-light performance, it delivers more energy per square foot than conventional PERC panels - while its sleek all-black design makes it a natural fit for residential rooftops.
N-Type technology means the HY-DH96N11B is highly resistant to LID, LeTID, and PID degradation, preserving more of its rated output over time. Backed by a 25-year product warranty and a 30-year linear power warranty with less than 0.4% annual degradation, and underwritten by Munich RE, this panel is built for decades of reliable production.
Key Features
- Up to 23.0% module efficiency - N-Type 210R cell platform for industry-leading output
- All-black bifacial dual-glass construction - aesthetic rooftop appeal with rear-side energy gains
- Lower temperature coefficient (-0.29%/�C) - better performance in Texas heat
- Resistant to LID, LeTID, and PID degradation - maintains output longer than PERC panels
- 25-year product warranty / 30-year linear power warranty - Munich RE backed
- Less than 1% first-year degradation, under 0.4% annually - guaranteed 87.4% output at year 30
- Tier-1 rated - IEC, UL, and ISO certified

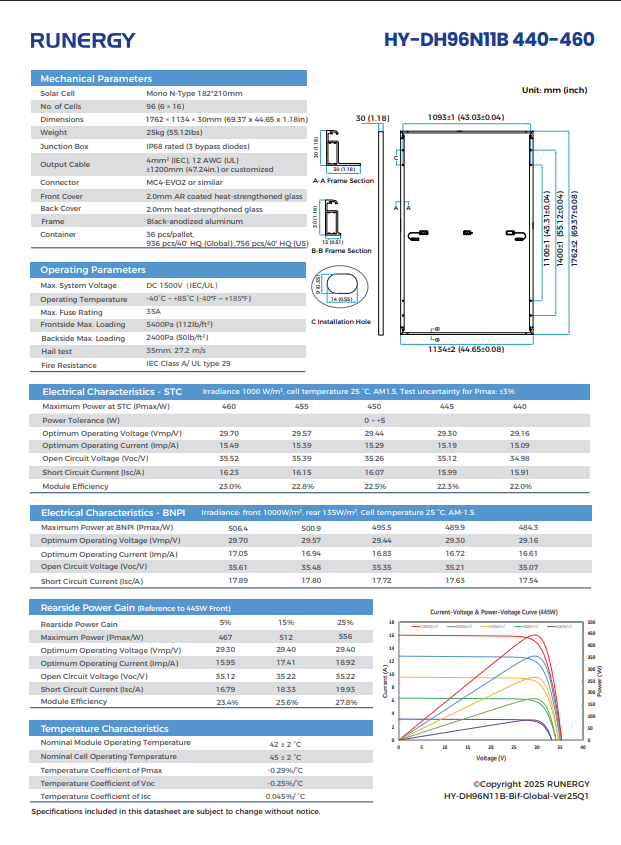

Specifications (STC - 455W)
| Electrical Characteristics (STC) | |
|---|---|
| Model | HY-DH96N11B (455W) |
| Rated Power Output (Pmax) | 455W |
| Power Tolerance | 0 ~ +5W |
| Max. Power Voltage (Vmp) | 29.57V |
| Max. Power Current (Imp) | 15.39A |
| Open-Circuit Voltage (Voc) | 35.39V |
| Short-Circuit Current (Isc) | 16.15A |
| Module Efficiency | 22.8% |
| Mechanical Parameters | |
| Solar Cell | Mono N-Type 182�210mm |
| Number of Cells | 96 (6�16) Half-Cell |
| Panel Dimensions | 1762 � 1134 � 30mm (69.37 � 44.65 � 1.18 in) |
| Panel Weight | 25kg (55.12 lbs) |
| Junction Box | IP68 (3 bypass diodes) |
| Output Cable | 4mm� (IEC) / 12 AWG (UL), �1200mm |
| Connector | MC4-EVO2 or similar |
| Front Cover | 2.0mm AR coated heat-strengthened glass |
| Back Cover | 2.0mm heat-strengthened glass |
| Frame | Black anodized aluminum |
| Operating Parameters | |
| Max. System Voltage | DC 1500V (IEC/UL) |
| Operating Temperature | -40�C to +85�C (-40�F to +185�F) |
| Max. Fuse Rating | 35A |
| Frontside Max. Loading | 5400Pa (112 lb/ft�) |
| Backside Max. Loading | 2400Pa (50 lb/ft�) |
| Hail Test | 35mm, 27.2 m/s |
| Fire Resistance | IEC Class A / UL Type 29 |
| Temperature Characteristics | |
| Temp. Coefficient of Pmax | -0.29%/�C |
| Temp. Coefficient of Voc | -0.25%/�C |
| Temp. Coefficient of Isc | +0.045%/�C |
| Packaging & Warranty | |
| Pcs per Pallet | 36 |
| Pcs per 40' HQ | 936 (Global) / 756 (US) |
| Product Warranty | 25 Years |
| Performance Warranty | 30 Years linear - 87.4% at year 30 (Munich RE backed) |
Have any questions? Email us at info@solwel.com or give us a call at (346) 432-4228.
***Disclaimer: Fragility and Shipping Information***
We recommend ordering no less than 8 panels at a time to protect from damage. Please be advised that solar panels are fragile and can be easily damaged during transit. For special circumstances, such as small or large quantities, limited access deliveries, or expedited shipping, please contact us at info@solwel.com.
- Shipping: While we take every precaution to ensure safe delivery, we cannot guarantee against damage that may occur in transit.
- Inspection: You must inspect for any visible damage before signing. Note any damage on the delivery receipt or with the freight carrier immediately. Signing without noting damage confirms acceptance of product in perfect condition, releasing Solwel and the freight carrier from liability. Take photos to document any damage. For major damage, refuse delivery.
- Claims: If you notice any damage, contact us within 24 hours of receipt (info@solwel.com) with supporting documentation. If circumstances do not allow immediate inspection, write "subject to inspection" on the driver receipt. Any damage claims need to be filed with freight companies as soon as possible. See our Terms and Conditions for more details.
Why Buy From Solwel?
- Free Shipping on Orders Over $10,000 - Fast fulfillment from our Houston and Dallas warehouses
- Authorized Distributor - Genuine manufacturer-backed products with full warranty support
- Expert Technical Support - Our team knows these products inside and out. Call us at (346) 432-4228
- Installer Pricing Available - Contact us for volume pricing and contractor accounts
- Stocked in Texas - Reduced lead times for Southwest and national projects
Frequently Asked Questions
What type of cell does the Runergy 455W use?
The HY-DH96N11B uses Mono N-Type 182�210mm half-cut bifacial cells built on Runergy's 210R platform - offering higher efficiency, lower degradation rates, and better resistance to LID, LeTID, and PID compared to standard PERC panels.
What is a bifacial solar panel?
A bifacial panel captures sunlight from both the front and rear sides, using reflected light from ground surfaces or rooftops. The HY-DH96N11B's rear side can generate additional power depending on albedo (reflectivity) of the surface below - particularly effective on ground-mount systems or light-colored roofs.
How does N-Type compare to standard PERC panels?
N-Type panels are less susceptible to light-induced degradation (LID) and light and elevated temperature-induced degradation (LeTID), meaning they maintain a higher percentage of their rated output over time. They also perform better in high-temperature conditions - important for Texas installations.
What warranty does the Runergy 455W carry?
The HY-DH96N11B includes a 25-year product/workmanship warranty and a 30-year linear performance warranty guaranteeing at least 87.4% output at year 30, with less than 1% first-year degradation and under 0.4% annually. The performance warranty is backed by Munich RE.
Does Solwel offer pallet or volume pricing on Runergy panels?
Yes. Solwel is a wholesale distributor and offers installer and contractor pricing on pallet quantities (36 panels/pallet). Contact us at (346) 432-4228 or email info@solwel.com for a volume quote.
