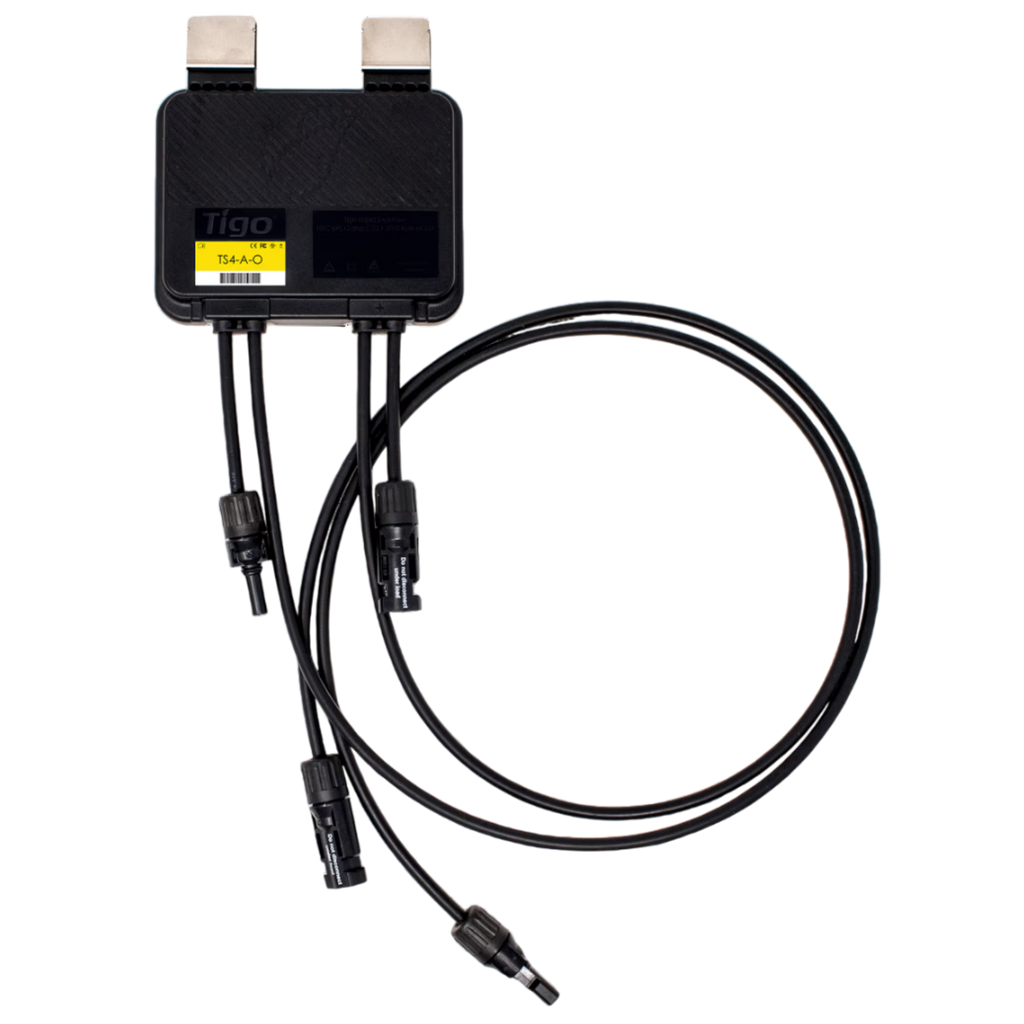

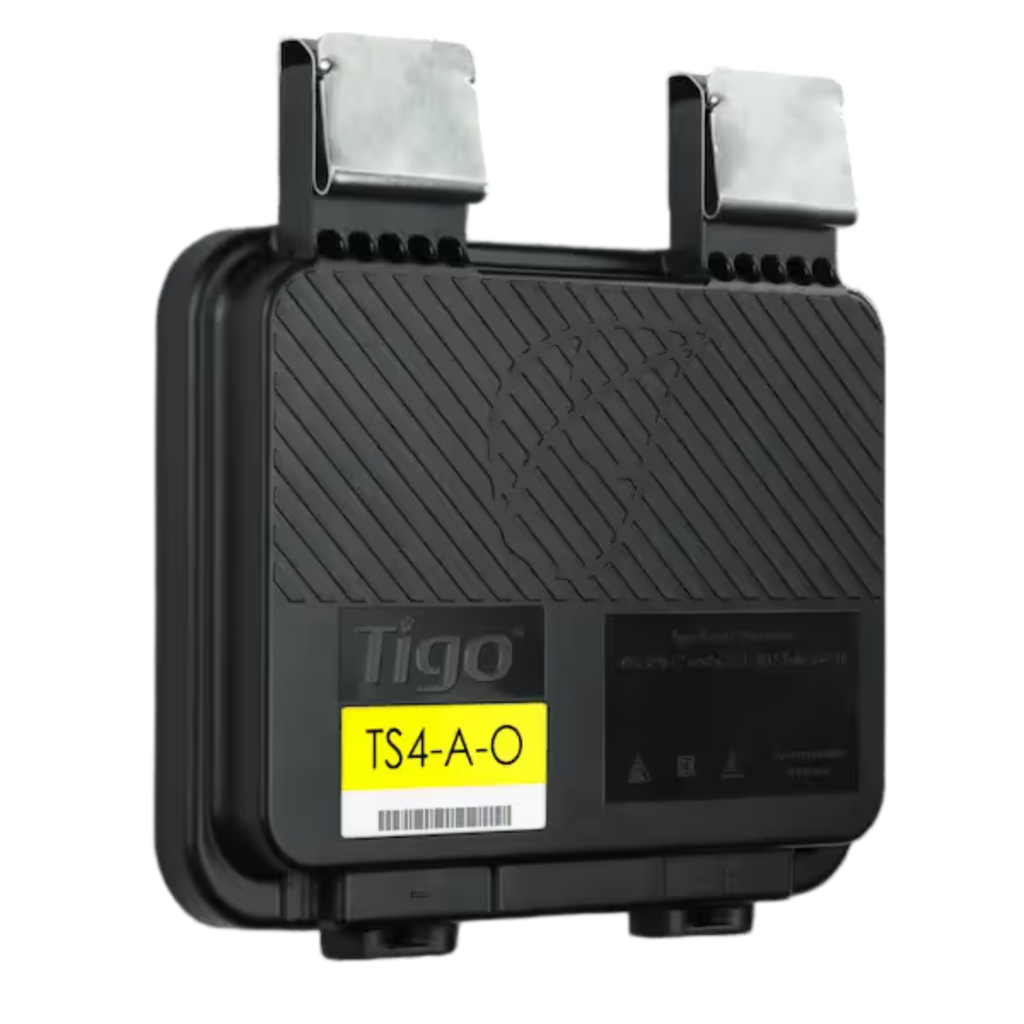

Tigo RSD Optmizer 22A (TS4-A-O)
$59.75 USD
Pickup available at Shop location
Usually ready in 2 hours
The Tigo TS4-A-O Rapid Shut Down Optimizer delivers advanced safety and performance for solar installations. This module-level device automatically de-energizes PV strings within seconds of grid loss or emergency shutdown, reducing arc flash risk and protecting equipment. Built for reliability, it integrates seamlessly with existing systems while enabling faster maintenance and safer emergency response. Ideal for residential and commercial solar arrays requiring rapid power isolation and enhanced system protection.
The Tigo CCA Kit and Tigo Access Point (TAP) are required for this item to work.�
| Feature | Details |
|---|---|
| Input Wattage | Up to 725 W |
| Function | Rapid Shut Down Optimizer |
| Shutdown Time | < 30 seconds |
| Input Voltage Range | 12-80 V |
| Current Rating | Up to 22A per module |
| Communication | Wireless 2.4GHz and/or PLC |
| Operating Temperature | -40�C to 85�C |
| Certifications | UL 1741-SB, IEC 62109-2 |
| Installation | Module-level |
| Warranty | 12 years |
�
Have any questions? Email us at info@solwel.com or give us a call at (346) 432-4228
Frequently Asked Questions
What is rapid shutdown and why is it required?
Rapid shutdown (RSD) is an NEC code requirement that allows emergency responders to de-energize a solar array quickly and safely. It is required on most new residential and commercial installations in the US.
Is this compatible with my inverter?
Compatibility depends on your inverter and system configuration. Contact our team to confirm compatibility before purchasing.
Is professional installation required?
Yes - rapid shutdown devices must be installed by a licensed solar professional to ensure NEC compliance. Solwel offers installation at our Houston and Dallas locations.
